Tripp Lite VGA over Cat5/6 Extender Kit

SKU
TRPB130101U
$152.60 /EACH
Out of stock

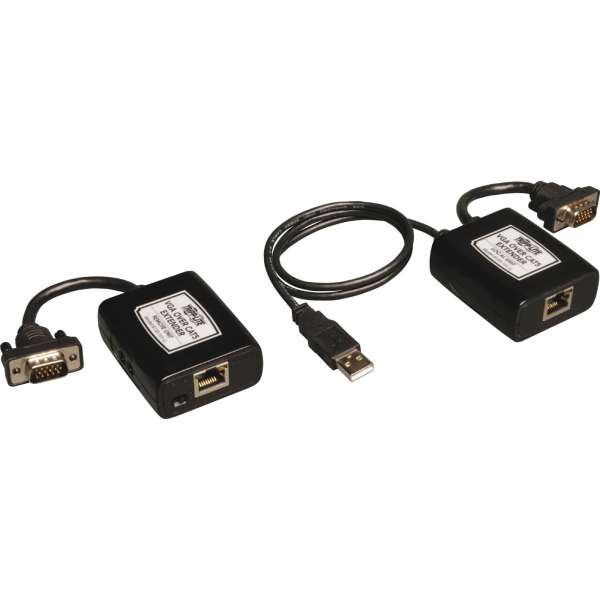

This VGA over Cat5 extender kit allows you to extend a 1920 x 1440 (60Hz) signal up to 350', or a 1024 x 768 (60Hz) signal up to 500', when using 24Awg, Solid Wire Cat5e/6 cable (sold separately). Extender draws power directly from a USB connection at the computer to eliminate the need for an external AC adapter. Receiver unit includes Gain adjustment for brightness and darkness control, and Equalization adjustment for sharp, clear images. VGA dongles allow for direct attachment to video equipment without requiring a VGA cable. Extender kit is perfect for digital signage applications, classroom or auditorium projectors, and more.


Additional Warranty Information

1 year limited warranty

Brand NameTripp Lite
Connectivity TechnologyWired
Country of OriginTaiwan
Environmental CertificationRoHS
Limited Warranty1 Year
Manufacturer Part NumberB130-101-U
ManufacturerTripp Lite by Eaton
Maximum Operating Distance500 ft
Maximum Video Resolution1920 x 1440
Media Type SupportedTwisted Pair
Network (RJ-45)Yes
Number of Input Devices Supported1
Number of Network (RJ-45) Ports2
Number of Output Devices Supported1
Number of USB Ports1
Number of VGA Inputs1
Number of VGA Outputs1
Package Contents
  • VGA Over Cat5 Transmitter
  • VGA Over Cat5 Receiver
  • EQ And GAIN Adjustment Screwdriver
Product ColorBlack
Product ModelB130-101-U
Product NameB130-101-U TAA / GSA Video Extender/Console
Product TypeVideo Extender Transmitter/Receiver
TAA CompliantYes
Twisted Pair Cable StandardCategory 6
USBYes
VGA InYes
VGA OutYes
UNSPSC45111815
Download PDF File
BrandTripp Lite
Weight (lbs)0.440000
UPC037332166593
MPNB130-101-U
