StarTech.com 4 Port PCIe Serial Adapter Card with 16550

SKU
STCPEX4S553
$118.03 /EACH
Out of stock

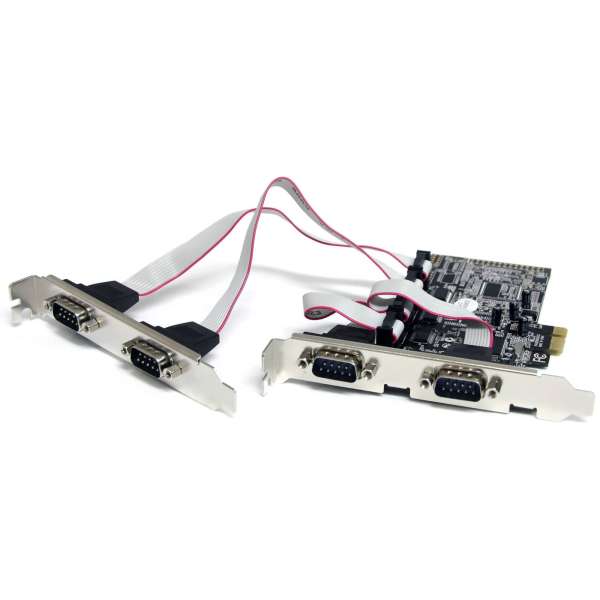

The PEX4S553 4-Port Native PCI Express RS232 Serial Adapter Card with 16550 UART lets you add 4 RS232 (DB9) serial ports, using a single PCI Express expansion slot. Based on a native single-chip design, this 4-port serial adapter card allows you to harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge-chip serial cards. The RS232 Serial Adapter Card includes 4 half-height/low-profile brackets, allowing the card to be installed into almost any PC case, regardless of form factor. Backed by a StarTech.com Lifetime warranty and free lifetime technical support.


Brand NameStarTech.com
Card HeightDual-profile
Country of OriginChina
Environmental CertificationREACH
Environmental CertificationRoHS
Environmental CertificationWEEE
Environmentally FriendlyYes
Form FactorPlug-in Card
Height0.7"
Host InterfacePCI Express x1
Limited WarrantyLifetime
ManufacturerStarTech.com
Manufacturer Part NumberPEX4S553
Number of Serial Ports (External)4
Package Contents
  • 4 Port Native PCI Express RS232 Serial Adapter Card with 16550 UART
  • 1 x Full Profile Bracket With Two DB9 Connectors
  • 4 x Low Profile Bracket
  • 1 x Driver CD
  • 1 x Instruction Manual
Packaged Quantity1
Platform SupportedPC
Product Name4 Port Native PCI Express RS232 Serial Adapter Card with 16550 UART
Product TypeSerial Adapter
Weight (Approximate)2.60 oz
Width5.1"
Download PDF File
BrandStarTech.com
Weight (lbs)0.500000
UPC065030843553
MPNPEX4S553
