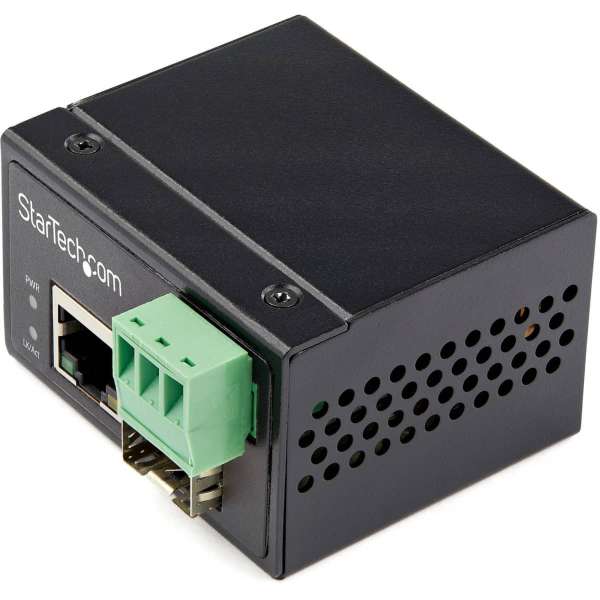

StarTech.com Industrial Fiber to Ethernet Media Converter

SKU
STCIMC100MSFP
$129.77 /EACH
Out of stock

An industrial media converter that converts fiber to copper at a network endpoint. A Flexible Solution Covering Different Requirements This media converter features an open SFP slot for any standard SFP to be used for the incoming fiber connection and is easily deployed across applications or fiber cable types. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation. It can be powered using 18V-36V AC or 12V -56V DC for a high degree of flexibility including applications like solar, automotive, and rail. Includes hardware for DIN rail or wall mounting. For Mission-Critical Applications Designed with IP-30 housing and has an MBTF of >500,000 hrs (Telcordia/Bellcore) at 50°C and an operating temperature range of include -40 C to 75 C for durability; it's rated to various vibration, shock, and free-fall standards: Vibration: EN 60068-2-6 Shock: EN 60068-2-27 Free-Fall: EN 60068-2-32 Dual Power Inputs Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation. The IMC100MSFP is backed by a StarTech.com 2-year warranty and free lifetime technical support.


Brand NameStarTech.com
Country of OriginTaiwan
Depth2.3"
Environmental CertificationRoHS
Environmental CertificationWEEE
Environmentally FriendlyYes
Ethernet TechnologyFast Ethernet
Expansion Slot TypeSFP
Fiber Mode SupportedMulti-mode
Fiber Mode SupportedSingle-mode
Form FactorDIN Rail Mountable
Form FactorWall Mountable
Height2"
Limited Warranty2 Year
ManufacturerStarTech.com
Manufacturer Part NumberIMC100MSFP
Maximum Distance Supported328.08 ft
Media Type SupportedOptical Fiber
Media Type SupportedTwisted Pair
Network (RJ-45)Yes
Network Technology100Base-FX
Network Technology100Base-TX
Number of Network (RJ-45) Ports1
Number of SFP Slots1
Number of Total Expansion Slots1
Package Contents
  • Transceiver/Media Converter
  • Mounting Hardware Kit
  • Quick-Start Guide
  • Terminal Block to Barrel Power Connector Adapter
  • Terminal Block
Plug/Connector TypeTerminal Block
Plug/Connector TypeType N
Power Consumption1.92 W
Power SourcePower Supply
Product NameTransceiver/Media Converter
Product TypeTransceiver/Media Converter
Total Number of Ports1
Weight (Approximate)2.90 oz
Width1.4"
Download PDF File
BrandStarTech.com
Weight (lbs)0.550000
UPC065030889667
MPNIMC100MSFP
