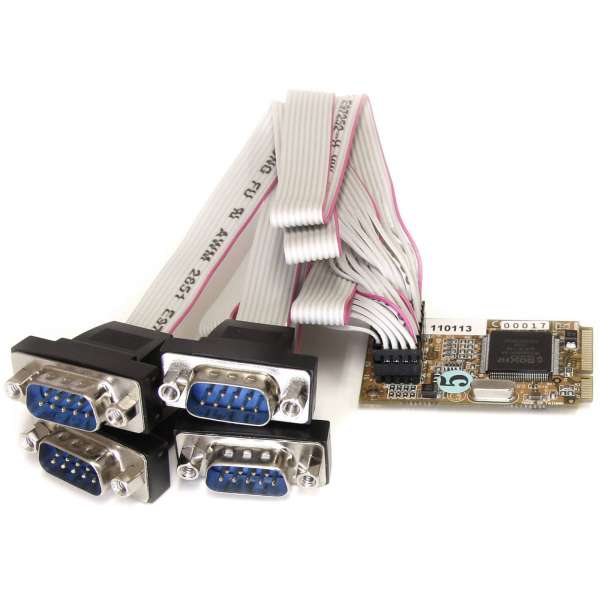

StarTech.com 4 Port RS232 Mini PCI Express Serial Card w/ 16650

SKU
STCMPEX4S552
$85.79 /EACH
Out of stock

The MPEX4S952 4-Port RS232 Mini PCI Express Serial Card (16650 UART) turns a mini-PCIe slot into four RS232 (DB9) serial ports with data rates up to 921.6 Kbps - a cost-saving solution for adding serial support to embedded systems missing the functionality. A native PCIe single-chip design enables you to take advantage of full PCI Express bus capability, by providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional "bridge chip" serial cards . Backed by a StarTech.com Lifetime Warranty and free lifetime technical support.


Brand NameStarTech.com
Card LengthFull-length
Country of OriginTaiwan
Environmental CertificationREACH
Environmental CertificationRoHS
Environmental CertificationWEEE
Environmentally FriendlyYes
Form FactorPlug-in Card
Height1.2"
Host InterfaceMini PCI Express
Limited WarrantyLifetime
Manufacturer Part NumberMPEX4S552
ManufacturerStarTech.com
Maximum Data Transfer Rate7.20 Mbit/s
Package Contents
  • 4 Port RS232 Mini PCI Express Serial Card w/ 16650 UART
  • 4 x DB9 Ribbon Cable
  • 1 x Driver CD
  • 1 x Instruction Manual
Ports Expandability4 x DB-9 RS-232 - Serial
Product Name4 Port RS232 Mini PCI Express Serial Card w/ 16650 UART
Product TypeMultiport Serial Adapter
TAA CompliantYes
Weight (Approximate)5.30 oz
Width0.4"
UNSPSC43201407
Download PDF File
BrandStarTech.com
Weight (lbs)0.450000
UPC065030844611
MPNMPEX4S552
