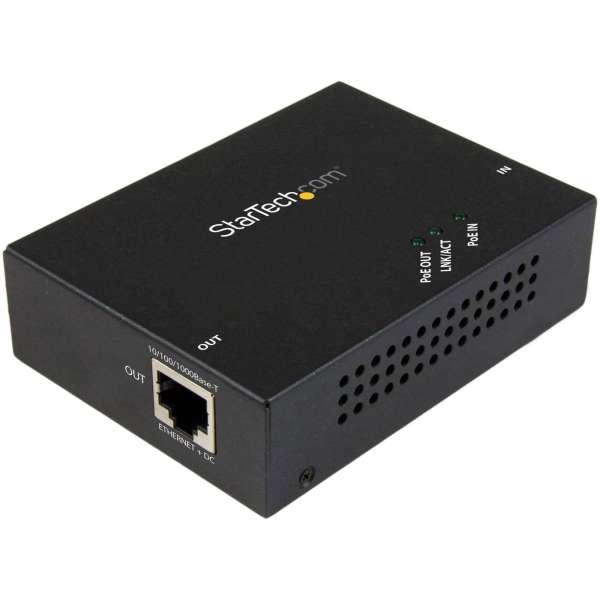

StarTech.com 1 Port Gigabit PoE+ Extender

SKU
STCPOEEXT1GAT
$154.32 /EACH
Out of stock

This Gigabit PoE+ extender spans your Power over Ethernet (PoE) device over longer distances, letting you double the 100m limitations of a traditional PoE infrastructure. Now you can connect your Gigabit PoE device up to a maximum of 200m away, so it's easy to install a remote IP camera or access point. Plus the extender can be daisy-chained for more scalability. Unrestricted PoE+ range and convenience Need more distance? This convenient PoE+ repeater maximizes range and flexibility by extending your PoE connection by an extra 100m (330ft), while providing 24-watt power output to compatible devices. Simply connect the extender to your power sourcing equipment (PSE) and your PoE-powered device (PD) and you're all set. The extender is compliant with the 802.3at/af standard, so it will work with existing PSE, such as a StarTech.com PoE+ switch (IES81000POE). Daisy chain for longer distance and flexibility Still need more distance? If an extra 100m isn't enough, this full-featured PoE extender offers daisy chain capability. You can easily connect four extenders together, letting you install your PoE+ PD up to 500m (1640ft) away. It's perfect for business, education, and retail environments (output wattage is dependent on the number of daisy-chained extenders used). Convenient installation options and durable construction Get up and running quickly. This Gigabit PoE+ extender can be positioned right where you need it, with a wall-mountable design that requires no external power adapter. You can enjoy reliable performance with little worry of downtime or failure, the extender features a rugged metal housing with built-in ESD and surge protection. The POEEXT1GAT is backed by a StarTech.com 2-year warranty and free lifetime technical support. Applications Ideal for Wi-Fi® access points, IP phones, surveillance cameras, and kiosks where a power connection is not available Enable remote installation of PoE+ devices over longer distance than conventional PoE range capabilities Perfect for SOHO, SMB, system integrators, and IT administrators


Brand NameStarTech.com
Certifications & Standards
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
CompatibilityCompatible Products:
  • Wi-Fi Access Points
  • IP Phones
  • Surveillance Cameras
  • Kiosks
Environmental CertificationRoHS
Environmental CertificationWEEE
Environmentally FriendlyYes
Form FactorWall Mountable
Height1"
Input Ports1 x Gigabit Ethernet
Length3.7"
Limited Warranty2 Year
ManufacturerStarTech.com
Manufacturer Part NumberPOEEXT1GAT
Maximum Output Power24 W
Maximum Output Voltage56 V DC
Minimum Output Voltage52 V DC
Output Ports1 x Gigabit PoE+
Package Contents
  • 1-Port Gigabit PoE+ Extender - 802.3at and 802.3af - 100 m (330 ft)
  • 1 x Instruction Manual
Packaged Quantity1
Product Name1-Port Gigabit PoE+ Extender - 802.3at and 802.3af - 100 m (330 ft)
Product TypePoE Extender
Protection TypeESD Protection
Protection TypeSurge Protection
TAA CompliantYes
Weight (Approximate)6.81 oz
Width2.7"
Download PDF File
BrandStarTech.com
Weight (lbs)0.700000
UPC065030860895
MPNPOEEXT1GAT
