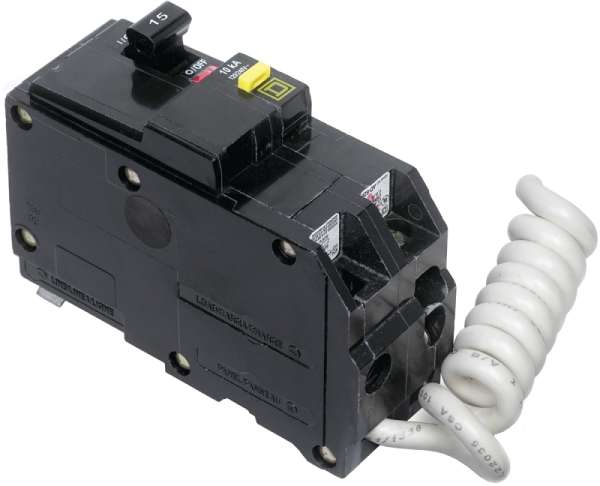

Square D QO QO215GFICP Circuit Breaker, Mini, 15 A, 2 -Pole, 120/240 VAC, Plug Mounting

SKU
ORG7556830
main product photo
$309.01 /EACH
Out of stock
Notify me when this product is in stock
  • QO and QOB circuit breakers have an overcenter, trip-free toggle mechanism with quick-make, quickbreak action and positive handle indication
  • The tripping mechanisms in two- and three-pole circuit breakers operate such that an overcurrent on any pole of the circuit breaker will cause all poles of the circuit breaker to open simultaneously
  • QO and QOB circuit breakers have Visi-Trip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit
  • The Visi-Trip indicator is only visible when the circuit breaker has tripped
  • The circuit breaker can be reset by pushing the handle to OFF and then to ON
  • When designing an electrical distribution system, overcurrent protective devices are generally selected based on performance requirements
  • Factors influencing this selection include system voltage, continuous current, interrupting rating and frequency
  • The continuous current rating of a circuit breaker is the maximum current in amperes which a device will carry continuously without exceeding the specified allowable temperature rise
  • The interrupting rating of a circuit breaker is the highest current at rated voltage that the circuit breaker is intended to interrupt under standard test conditions
About Us:
Amazon_Reviews
150,000+
Reviews
Rated 4.7 on Amazon
★★★★★ 4.7
7 Private Brands
7 Private
Brands
Developed in-house
Fast Shipping
Fast Shipping
62 warehouses nationwide
20 Years Experience
20 Years
Experience
Trusted since 2005
Wholesale Discounts
Wholesale
Discounts
Special pricing
for bulk orders
Call 800-995-7539
Category: Home Electrical & Lighting

QO (plug-on) and QOB (bolt-on) one, two and three pole thermal-magnetic circuit breakers provide overcurrent protection and switching on AC and DC systems. Plug-on QO circuit breakers are for use in QO load centers, NQ and NQOD panelboards, OEM mounting bases and Speed-D switchboard distribution panels. Bolt-on QOB circuit breakers are for use in NQO and NQOD panelboards.


Actuator TypeMagnetic Thermal
Current Rating15A
Dimensions1.5 in W x 2.91 in D x 4.12 in H
Interrupt Rating10kA
Mounting TypePlug
Number of Poles2
Number Of Spaces2
Operating Frequency50/60Hz
Operating Temperature104deg F
Suitable forQO Series Load Center
Terminal TypeScrew Clamp
TypeMini
Voltage Rating120/240VAC
Wire Size14 to 8 12 to 8AWG
BrandSquare D
Weight (lbs)0.900000
UPC047569838309
MPNQO215GFICP
