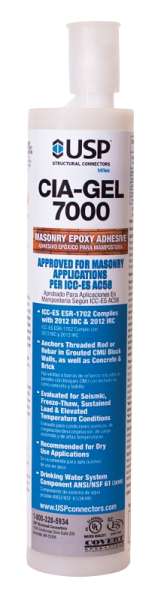

MiTek GEL7-10 Epoxy Adhesive, Solid, Black/White, 8.6 oz Cartridge

SKU
ORG7193568
by MiTek
$33.45 /EACH
Out of stock

CIA-GEL 7000 epoxy is a structural adhesive specifically designed to attach threaded anchor rods into fully grouted concrete masonry units (CMU) and has recently been evaluated to ICC-ES AC58 for seismic, sustained load, elevated temperature and freeze thaw suitability conditions. It can also be used to install anchor rods into uncracked concrete and reinforced brick. It is a low odor, solvent free, non-shrink adhesive. The two-component (resin and hardener) epoxy is supplied in equal volume cartridges, which are combined in a 1:1 ratio when dispensed through the attached mixing nozzle. Either a hand powered or air-powered dispenser may be used. The epoxy has a two year shelf life when stored in unopened containers at a temperature of 70 deg F.


Applicable MaterialsConcrete
Application MethodNozzle
ColorBlack/White
CompositionsPart A Diglycidyl Ether of Bisphenol A Trimethylolpropane triglycidyl ether Crystalline Silica Titanium Dioxide Part B n-aminoethylpiperazine Nonyl phenol Crystalline Silica
Compression Strength18500 psi
Container TypeCartridge
Curing Time96 hr
Flash Point275 deg F Part A 200 deg F Part B
FormSolid
Mixing Ratio11
Net Content8.6 oz
ResistsChemical
Setting Time5 hr
Shear Strength6000 psi
Shore Hardness90
Specific Gravity1.21 Part A 1.74 Part B
Temperature Rating40 deg F
Tensile Strength5500 psi
Viscosity16000 cPs Part A 23500 cPs Part B
VOC Content16 g/L
BrandMiTek
Weight (lbs)1.250000
UPC081942135623
MPNGEL7-10
