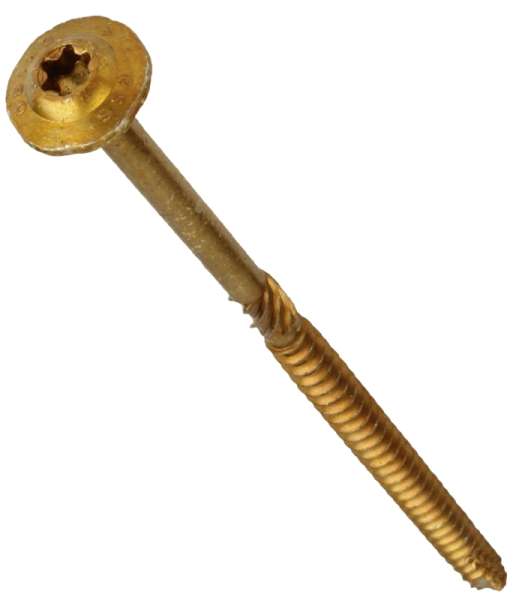

GRK Fasteners RSS 10225 Structural Screw, 5/16 in Thread, 4 in L, Washer Head, Star Drive, Steel, 400 BX

SKU
ORG2816346
$265.73 /PACKAGE
Out of stock

GRK's RSS screw is made of specially hardened steel to provide you with high tensile, torque and shear strength. The sharp threads and points bite instantly into the material (including hardwood), reducing the splitting effect due to smaller shanks. RSS screws that are 3-1/8 in and longer have CEE threads which enlarge the screw hole for the non-threaded portion of the fastener, allowing the wood to settle easily and increases the screw's drawing strength. The CEE thread also reduces the friction on the screw shank which can result in lowering the driving torque and the likelihood of splitting the wood. This is why the RSS screw is an efficient lag screw alternative. Our round head with built-in shield (washer type head) has no sharp edges like conventional lag screws. The added shoulder (nominal diameter) underneath the washer has the ability to center the RSS screw in pre-drilled hardware like hinges and connector plates.


Applicable MaterialsWood
Drive SizeT-30
Drive TypeStar
Head TypeWasher
Length4
MaterialSteel
Package Quantity400BX
Shear Strength2948lb
Tensile Strength4247lb
Thread Length2-3/4in
Thread Size5/16in
Download PDF File
BrandGRK Fasteners
Weight (lbs)17.800000
UPC772691102256
MPN10225
