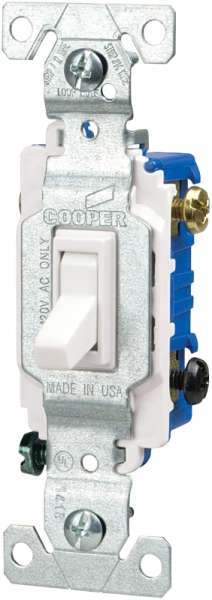

Eaton Wiring Devices 1303-7LTW-SP Toggle Switch, 15 A, 120 VAC, 3 -Position, Screw Terminal, White

SKU
ORG9236928
$11.82 /EACH
Out of stock

Longer, wider strap on toggle lighted switches provides 40% more contact area to wall board. Virtually eliminates floating installations. Industrial design cam action mechanism insures quiet switch action. Patented built-in wire stripper for #14 and #12 wire to speed installation. Unbreakable top and bottom housing eliminates call-backs due to job site breakage. Patented built-in wire looped for pre-looping. Three way switches feature additional push-in common termination for feed-through tapping. Push-in terminals accept #14 solid wire only. Side wire terminals accept up to #10 solid or stranded wire. Tri-combo screws accept slotted, Phillips and Robertson-head tools for installations.


ColorWhite
Current Rating15A
Dimensions1.3 in L x 4.2 in H
Housing MaterialPolycarbonate
Number of Poles1
Number Of Positions3
Temperature Rating-20 to 60deg C
Terminal TypeScrew
Voltage Rating120VAC
Download PDF File
BrandEaton Wiring Devices
Weight (lbs)0.150000
UPC032664524721
MPN1303-7LTW-SP
