Eaton OS106D1 Series OS106D1-C2-K-L Motion Sensor Switch, 1-Pole, 180 deg View, 1000 sq-ft Coverage Area

SKU
ORG9234725
by Eaton

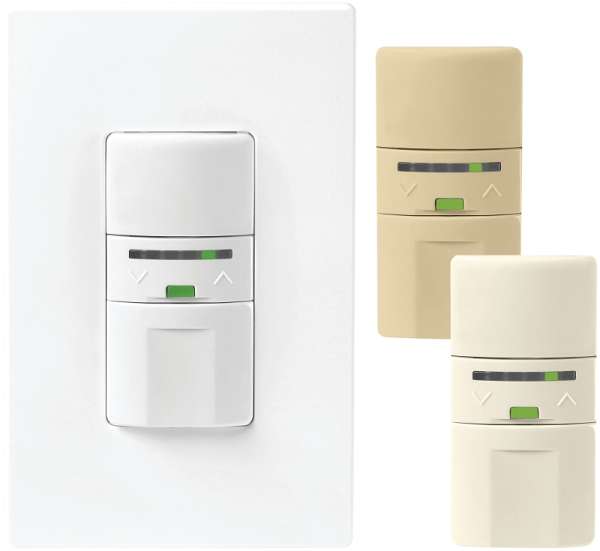

main product photo
$60.09 /EACH
Out of stock
Notify me when this product is in stock
  • Soft on/fade off
  • Preset and light level change is easily shown with horizontal row of green LED's
  • Single green LED indicates load status, provides locator light in dark and blinks to indicate motion detection
  • Push pad design provides minimal travel and crisp actuation
  • Provides 180 deg field of view and 1000 sq-ft of major motion coverage
  • Selectable time delay of 5 s (test), 5 min, 15 min and 30 min for lights to remain on after room is vacated
  • Reverse mode allows light to stay off in a room when motion is detected
  • Occupancy sensors time delay default set to 5 min
  • Vacancy sensors time delay default set to 30 min
  • Occupancy sensor provides a selectable ambient light override preventing lights from switching ON when there is acceptable natural light
About Us:
Amazon_Reviews
150,000+
Reviews
Rated 4.7 on Amazon
★★★★★ 4.7
7 Private Brands
7 Private
Brands
Developed in-house
Fast Shipping
Fast Shipping
62 warehouses nationwide
20 Years Experience
20 Years
Experience
Trusted since 2005
Wholesale Discounts
Wholesale
Discounts
Special pricing
for bulk orders
Call 800-995-7539
Category: Home Electrical & Lighting

Eaton OS106D1 Motion Sensor Switch, Sensor Type: Motion, 120 VAC, Wattage Rating: 600 W, Switch Operation: Automatic On/Off, Number of Poles: 1, Compatible Bulb Type: ELV, Halogen, Incandescent, MLV, 1000 sq-ft Coverage Area, Field of View: 180 deg, Time Delay: 5 sec, 5 min, 15 min and 30 min, Operating Temperature: 32 to 104 deg F, Housing Material: Polycarbonate


Compatible Bulb TypeELV Halogen Incandescent MLV
Coverage Area1000sq-ft
Field of View180deg
Housing MaterialPolycarbonate
Number of Poles1
Operating Temperature32 to 104deg F
Sensor TypeMotion
Switch OperationAutomatic On/Off
Time Delay5 sec 5 min 15 min and 30 min
Voltage Rating120VAC
Wattage Rating600W
Download PDF File
BrandEaton
Weight (lbs)0.380000
UPC032664744266
MPNOS106D1-C2-K-L
