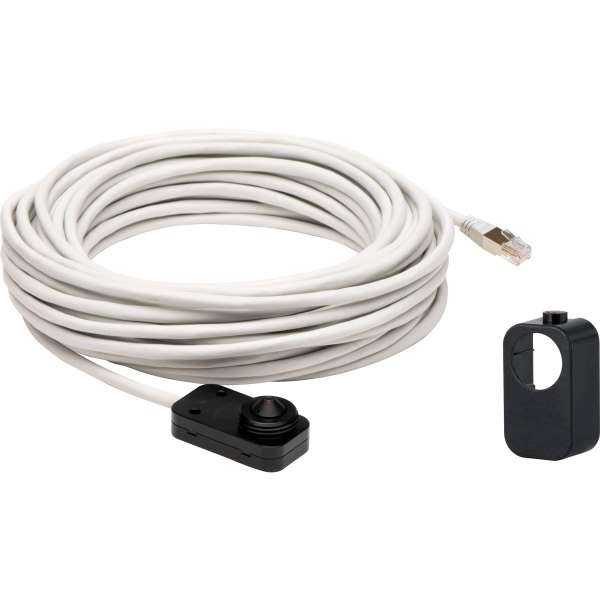

Flexible, extremely discreet design for indoor use; Pinhole lens with HDTV 1080p resolution; Wide 92 horizontal field of viewExtremely discreet installation. AXIS F1025 Sensor Unit, together with an AXIS F Main Unit, is ideal for use in extremely discreet indoor surveillance applications, such as in ATMs (automated teller machines), banks, stores, hotels and elevators. The small AXIS F1025 unit can be installed, for instance, in tight places, in doorways, behind metal sheets or flush-mounted in a wall or ceiling, with only a pin hole visible for the lens.. AXIS F1025 comprises an image sensor and a pinhole lens that provides a wide 92 horizontal field of view in 1080p resolution. It comes with a 3-m or 12-m (10-ft. or 39-ft.) pre-mounted cable for connection to an AXIS F Main Unit. An AXIS F8202 Straight Mounting Bracket is included for mounting on a flat surface.

Additional Information	Cable Length: 10 ft; Image sensor: 1/2.8" (effective) progressive scan RGB CMOS; Minimum illumination:Color: 0.3 lux; Lens: 3.7 mm, F2.5: 92 viewa with AXIS F41/F44; 56 viewa with AXIS F44 in HDTV 720p; Operating conditions: Humidity 10-85% RH (non-condensing)
Application/Usage	Indoor
Application/Usage	Surveillance
Brand Name	AXIS
Cable Length	10 ft
Certifications & Standards	ECE R10 rev.04; EN 50121-4; IEC/EN/UL 60950-1; IEC 60068-2-1; IEC 60068-2-2; IEC 60068-2-14; IEC 60068-2-30; IEC 60068-2-78; IEC 60529 IP4X; IEC 62236-4; EN 55022 Class B; EN 55024; EN 61000-3-2; EN 61000-3-3; EN 61000-6-1; EN 61000-6-2; FCC Part 15 Subpart B Class B; ICES-003 Class B; VCCI Class B; C-tick AS/NZS CISPR 22 Class B; KCC KN22 Class B; KN24, EN 50581; EN 50155 (vibration, shock, bump); IEC 60068-2-60; IEC 60529 IP66; IEC 60721-3-5 5M3 (vibration, shock); IEC/EN/UL 60950-22; NEMA 250 Type 4X
Form Factor	Ceiling Mountable
Form Factor	Flush Mount
Form Factor	Wall Mountable
Height	0.8"
Image sensor	1/2.8" (effective) progressive scan RGB CMOS
Lens	3.7 mm, F2.5	92 viewa with AXIS F41/F44
Manufacturer Part Number	0735-001
Manufacturer	Axis Communications
Material Details	Aluminum - Casing
Minimum illumination	Color	0.3 lux
NDAA Compliant	Yes
Operating conditions	Humidity 10-85% RH (non-condensing)
Package Contents	F1025 Sensor Unit; F8202 Straight Mounting Bracket; Installation Guide
Product Family	F
Product Material	Aluminum
Product Model	F1025
Product Name	F1025 Sensor Unit
Product Series	F
Product Type	Surveillance Camera Sensor Unit
TAA Compliant	Yes
Weight (Approximate)	2.72 oz
Width	1.2"

More Information

Brand	Axis
Weight (lbs)	0.400000
UPC	331021045736
MPN	0735-001
